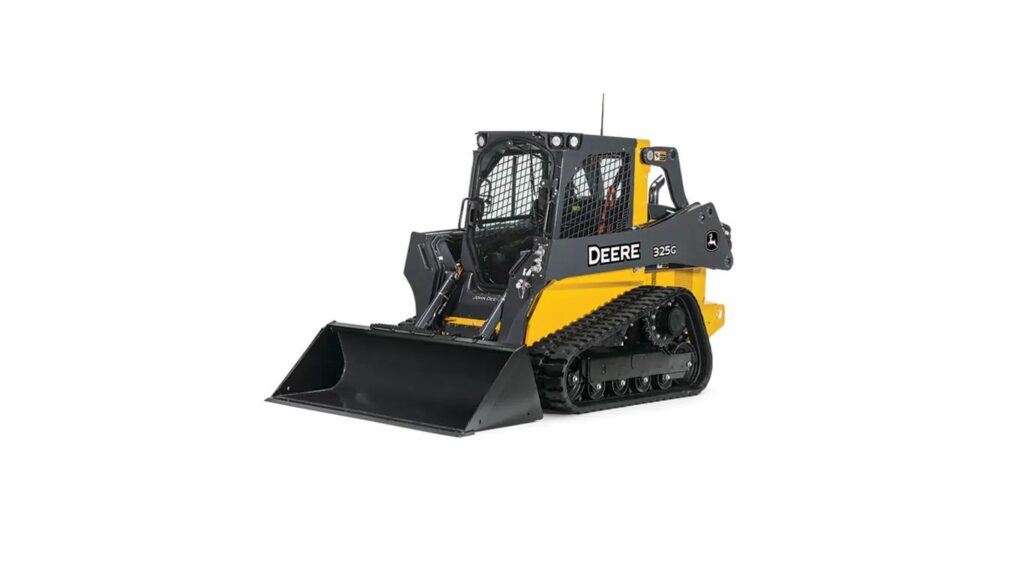

JOHN DEERE 325G Compact Track Loader
Compact Equipment
- Rated Operating Capacity: 1176 kg (2,590 lb.)
- Gross Horsepower: 54.8 kW (74 hp)
- Net Horsepower: 52.5 kW (70 net hp)
- Operating Weight: 4313 kg (9,500 lb.)
Select a category to view specifications (or view all).
| PERFORMANCE - Ground Bearing Pressure - Foundry, kPa (PSI) | 39.3 (5.7) |
|---|---|
| PERFORMANCE - Tipping Load - Foundry, kg (lbs) | 3360 (7400) |
| DRIVELINE - Track Shoe Width, mm (inches) | 320 (12.6) |
| DIMENSIONS - Rear Departure Angle, Degrees | 30.5 |
| PERFORMANCE - Hydraulic Power - Option, kW (hp) | 39.645 (53.1) |
| PERFORMANCE - Breakout - Lift Foundry, kN (lbf) | 23.3 (5250) |
| CAPACITIES - Fuel Tank, ltr (gallons (US)) | 79 (21) |
| PERFORMANCE - Pump Flow, lt/min (gallons (US) / min) | 70.01 (19) |
| DIMENSIONS - Width - No Bucket, mm (inches) | 1820 (71.5) |
| DIMENSIONS - Dump Angle, Degrees | 41 |
| WEIGHTS - Operating Weight - Foundry, kg (lbs) | 4313 (9500) |
| PERFORMANCE - Hydraulic Power, kW (hp) | 27.477 (36.8) |
| DRIVELINE - Engine Output - Gross, kW (hp) | 54.8 (74) |
| DRIVELINE - Engine Manufacturer | Yanmar |
| DIMENSIONS - Dump Height - Maximum Foundry, mm (inches) | 2590 (102.1) |
| DIMENSIONS - Height to Hinge Pin, mm (inches) | 3200 (126.1) |
| PERFORMANCE - Pump Flow - Option, lt/min (gallons (US) / min) | 101 (27) |
| DIMENSIONS - Height - Top Of Cab, mm (inches) | 2060 (81.1) |
| DIMENSIONS - Rollback - Ground Level, Degrees | 34 |
| PERFORMANCE - Rated Operating Capacity - Foundry, kg (lbs) | 1176 (2590) |
| PERFORMANCE - Speed - Maximum, kph (mph) | 9.3 (5.8) |
| DRIVELINE - Engine Output - Net, kW (hp) | 52.5 (70) |
| DRIVELINE - Emission Rating | Tier 4 |
| PERFORMANCE - System Pressure, bar (PSI) | 237.87 (3450) |
| DRIVELINE - Rated Speed, rpm | 2500 |
| PERFORMANCE - Breakout - Bucket Foundry, kN (lbf) | 38.9 (8750) |
| DRIVELINE - Aspiration | Turbo |
| PERFORMANCE - Speed - Maximum Option, kph (mph) | 13.2 (8.2) |
| DRIVELINE - Torque, Nm (lbf / ft) | 280 (207) |
| DESCRIPTION - Lift Geometry | Vertical |
| DIMENSIONS - Length - No Bucket, mm (inches) | 2850 (112.3) |
| DRIVELINE - Engine Model | 4TNV98CT |
| DIMENSIONS - Ground Clearance, mm (inches) | 240 (9.3) |
| DIMENSIONS - Length - Foundry Bucket, mm (inches) | 3460 (136.3) |
| DRIVELINE - Displacement, ltr (Inches³) | 3.3 (203) |
Featured List
- BUCKET BREAKOUT FORCE: 2724 kg (6,000 lb.)
- NET HORSEPOWER: 52.5 kW (70 hp)
- LIFT HEIGHT: 3.20 m (126.1 in.) (10 ft. 6 in.)
- OPERATING WEIGHT: 4313 kg (9,500 lb.)
- RATED OPERATING CAPACITY: 1176 kg (2,590 lb.)
- GROSS HORSEPOWER: 54.8 kW (74 hp)
Featured Content
- Industry-leading bucket breakout forces and auxiliary flow
- The 325G’s height to hinge pin is 10 ft. 6 in. to easily load high-sidewall dump trucks, feed mixers, and hoppers.
With the universal Quik-Tatch,™ you can go from compact loader bucket, to forks, to whatever, in just seconds. Each loader model delivers plenty of standard hydraulic power to operate augers, hydraulic hammers, roller levels, trenchers, or power rakes, to list just a few.
- Easy-to-operate controls maximize an operator’s skills, for more everyday productivity.
- Spacious, comfortable cab is even more tightly sealed to keep out noise and dust. Available options include a four-season cab, Bluetooth® radio, and heated seats.
- Excellent all-around visibility has been further enhanced with customer-inspired side lighting and rearview camera options.
- Easy Maintenance: Cab foot-well area can be washed out in a matter of minutes. Glove-friendly removable side windows make cleaning easier.
- Optional JDLink™ provides machine data and health alerts to help you decrease costly downtime.
- Features an EPA Final Tier 4 (FT4)/Stage IV engine that is simple, fully integrated, and fully supported to deliver industry-leading fuel efficiency and uptime.
