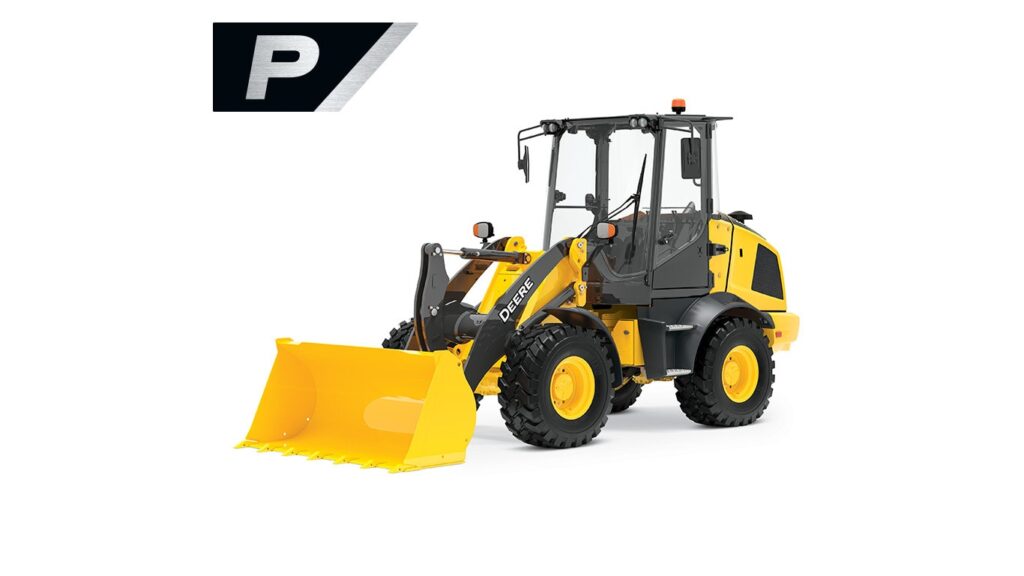

JOHN DEERE 244 P-Tier Compact Wheel Loader
Compact Equipment
- Net Power: 52 kW (71 hp) at 2,400 rpm
- Operating Weight: 5560 kg (12,258 lb.)
- Bucket Capacity: 0.8–1.1 m3 (1.0–1.4 cu. yd.)
Select a category to view specifications (or view all).
| CAPACITIES - Pump Flow - 1, lt/min (gallons (US) / min) | 70 (18) |
|---|---|
| DRIVELINE - Tire size - Standard | 365 / 70 R18 |
| CAPACITIES - Pump Type | Gear |
| DRIVELINE - Service Brake - Actuation | Hydraulic |
| DIMENSIONS - Width Over tires - Std, mm (ft/in) | 1920 (6 ft 4 in) |
| CAPACITIES - Breakout - Bucket, kgf (lbf) | 4895 (10792) |
| WEIGHTS - Operating Weight, kg (lbs) | 5560 (12258) |
| DRIVELINE - Front Differential Type | Locking |
| DRIVELINE - Engine Model | 4TNV98CT |
| CAPACITIES - Ride Control System | Yes |
| DRIVELINE - Engine Manufacturer | Yanmar |
| DIMENSIONS - Ground clearance, mm (inches) | 285 (11) |
| CAPACITIES - Hydraulic Tank, ltr (gallons (US)) | 66 (17.4) |
| DIMENSIONS - Height - Over Cab, mm (ft/in) | 2750 (9 ft ) |
| DRIVELINE - Rated Speed, rpm | 2400 |
| CAPACITIES - System Pressure, bar (PSI) | 230 (3335) |
| CAPACITIES - Fuel Tank, ltr (gallons (US)) | 90 (23.8) |
| DIMENSIONS - Height - Pivot Pin, mm (ft/in) | 3220 (10 ft 7 in) |
| DRIVELINE - Engine Output - Net, kW (hp) | 52 (71) |
| DIMENSIONS - Wheelbase, mm (ft/in) | 2150 (7 ft 1 in) |
| DRIVELINE - Parking Brake - Type | Wet Disc |
| DRIVELINE - Torque, Nm (lbf / ft) | 280 (206) |
| DRIVELINE - Transmission Type | Hydrostatic |
| DRIVELINE - Rear Differential Type | Open |
| CAPACITIES - Heaped Capacity, m³ (yd³) | 0.8 (1) |
| DRIVELINE - Service Brake - Type | Wet Disc & Drum |
| DRIVELINE - Displacement, ltr (Inches³) | 3.3 (203) |
| DIMENSIONS - Reach - At 2130mm 45° Dump, mm (ft/in) | 1520 (5 ft ) |
Featured List
- Engine Net Power: 52 kW (71 hp)
- Cab Height: 2.75 m (9 ft. 0 in.)
- Operating Weight: 5,560 kg (12,258 lb.)
- Bucket Capacity: 0.8–1.1 m3 (1.0–1.4 cu. yd.)
Featured Content
- Standard ride control cushions the boom during travel over rough and uneven terrain, reducing material spillage from the bucket and minimizing site cleanup.
- Low-effort joystick controls boom and bucket, forward-neutral-reverse (F-N-R), and differential lock. Standard mini-joystick controls auxiliary hydraulic functions including optional high flow. Adjustable-height monitor lets operators keep close watch on vital machine functions.
- Industry-exclusive Articulation Plus™ steering system combines 30 degrees of articulation with 10 additional degrees of rear-wheel steer. Reduced articulation angle design delivers tighter turns that are more stable, especially with large loads, than comparatively sized loaders without Articulation Plus.
- Loader arm and coupler design improves the lifting path to near parallel — for better load-carrying capability than previous models. This keeps the load more level from ground to truck-bed height and helps the operator focus on the task instead of on making manual adjustments.
- With a standard top speed of over 23 mph, the 244 P-Tier can make some pretty quick moves on and between jobsites.
- Load-sensing AutoShift powertrain technology eliminates productivity-interrupting manual shifts between gear ranges while providing smooth direction changes.
