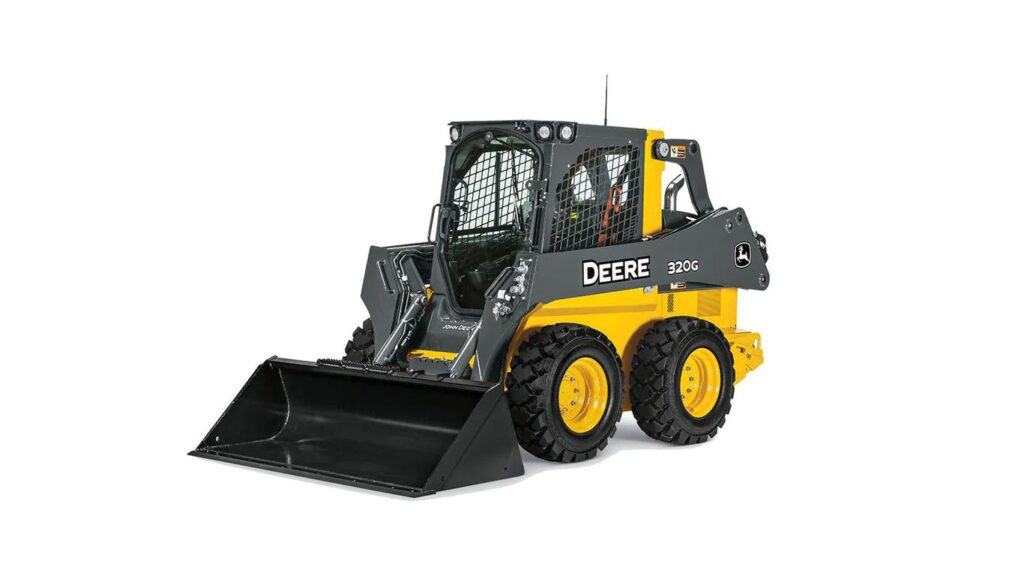

JOHN DEERE 320G Skid Steer
Compact Equipment
- Rated Operating Capacity: 994 kg (2,190 lb.)
- Gross Horsepower: 51.7 kW (69 hp)
- Net Horsepower: 49.4 kW (66 net hp)
- Operating Weight: 3246 kg (7,150 lb.)
Select a category to view specifications (or view all).
| DRIVELINE - SAE Gross Power, kW (hp) | 51.7 (69) |
|---|---|
| DESCRIPTION - Lift Geometry | Vertical |
| DIMENSIONS - Reach - Max Dump Height Foundry, mm (inches) | 740 (29.2) |
| DIMENSIONS - Overall Height, mm (inches) | 2060 (81.1) |
| DRIVELINE - Engine Manufacturer | Yanmar |
| DESCRIPTION - Precision Guidance | No |
| DIMENSIONS - Wheelbase, mm (inches) | 1120 (44.2) |
| CAPACITIES - Fuel Tank, ltr (gallons (US)) | 79 (21) |
| PERFORMANCE - Rated Operating Capacity - Foundry, kg (lbs) | 994 (2190) |
| PERFORMANCE - Breakout - Lift Foundry, kN (lbf) | 16.5 (3725) |
| DESCRIPTION - Proximity Guidance | No |
| DRIVELINE - Tire size - Standard | 12 - 16.5 - 12 PR SKS |
| DRIVELINE - Engine Model | 4TNV98C |
| PERFORMANCE - Hydraulic Power, kW (hp) | 28.842 (38.6) |
| PERFORMANCE - Speed - Maximum Option, kph (mph) | 17.9 (11.1) |
| WEIGHTS - Operating Weight - Foundry, kg (lbs) | 3246 (7150) |
| DIMENSIONS - Rollback - Ground Level, Degrees | 33 |
| DIMENSIONS - Rear Departure Angle, Degrees | 28 |
| PERFORMANCE - Tipping Load - Foundry, kg (lbs) | 1989 (4380) |
| PERFORMANCE - System Pressure, bar (PSI) | 224.08 (3250) |
| PERFORMANCE - Speed - Maximum, kph (mph) | 11.1 (6.9) |
| DIMENSIONS - Ground Clearance, mm (inches) | 240 (9.3) |
| DIMENSIONS - Dump Height - Maximum Foundry, mm (inches) | 2480 (97.7) |
| DRIVELINE - Emission Rating | Tier 4 |
| DRIVELINE - SAE Net Power, kW (hp) | 49.4 (66) |
| PERFORMANCE - Pump Flow - Option, lt/min (gallons (US) / min) | 112 (30) |
| DIMENSIONS - Width - No Bucket, mm (inches) | 1700 (67) |
| DIMENSIONS - Length - With Bucket Foundry, mm (inches) | 2460 (136.3) |
| DESCRIPTION - Fleet Management | Yes |
| DIMENSIONS - Height to Hinge Pin, mm (inches) | 3100 (122.2) |
| PERFORMANCE - Rated Operating Capacity - Optional Counterweight Foundry, kg (lbs) | 1067 (2350) |
| DRIVELINE - Max. Gross Torque, Nm (lbf / ft) | 241 (178) |
| DIMENSIONS - Length - No Bucket, mm (inches) | 2850 (112.3) |
| PERFORMANCE - Pump Output, lt/min (gallons (US) / min) | 78 (21) |
| DRIVELINE - Rated Engine Speed, rpm | 2500 |
| DRIVELINE - Aspiration | Naturally Aspirated |
| PERFORMANCE - Breakout - Bucket Foundry, kN (lbf) | 26.6 (6000) |
| DIMENSIONS - Dump Angle, Degrees | 43 |
| PERFORMANCE - Axle Torque - Maximum, Nm (lbf / ft) | 6771 (4994) |
| PERFORMANCE - Hydraulic Power - Option, kW (hp) | 41.414 (55.5) |
| DRIVELINE - Drive Chain Rating [ANSI] | 80 - HD |
| DRIVELINE - Displacement, ltr (Inches³) | 3.3 (203) |
Featured List
- NET HORSEPOWER: 49.4 kW (66 hp)
- BUCKET BREAKOUT FORCE: 1905 kg (4,200 lb.)
- RATED OPERATING CAPACITY: 994 kg (2,190 lb.)
- GROSS HORSEPOWER: 51.7 kW (69 hp)
- LIFT HEIGHT: 3.10 m (122.2 in.) (10 ft. 2 in.)
- OPERATING WEIGHT: 3246 kg (7,150 lb.)
Featured Content
- Easy-to-operate controls maximize an operator’s skills, for more everyday productivity.
- Spacious, comfortable cab is even more tightly sealed to keep out noise and dust. Available options include a four-season cab, Bluetooth® radio, and heated seats.
- Excellent all-around visibility has been further enhanced with customer-inspired side lighting and rearview camera options.
- Redesigned cab features an improved door seal with integrated chinstrap and glove-friendly removable side windows.
- Easy Maintenance: Cab foot-well area can be washed out in a matter of minutes. Glove-friendly removable side windows make cleaning easier.
- Optional JDLink™ provides machine data and health alerts to help you decrease costly downtime.
- Industry-leading bucket breakout forces and auxiliary flow
- Features an EPA Final Tier 4 (FT4)/Stage IV engine that is simple, fully integrated, and fully supported to deliver industry-leading fuel efficiency and uptime.
With the universal Quik-Tatch,™ you can go from skid steer bucket, to forks, to whatever, in just seconds. Each loader model delivers plenty of standard hydraulic power to operate augers, roller levels, trenchers, or power rakes, to list just a few.
