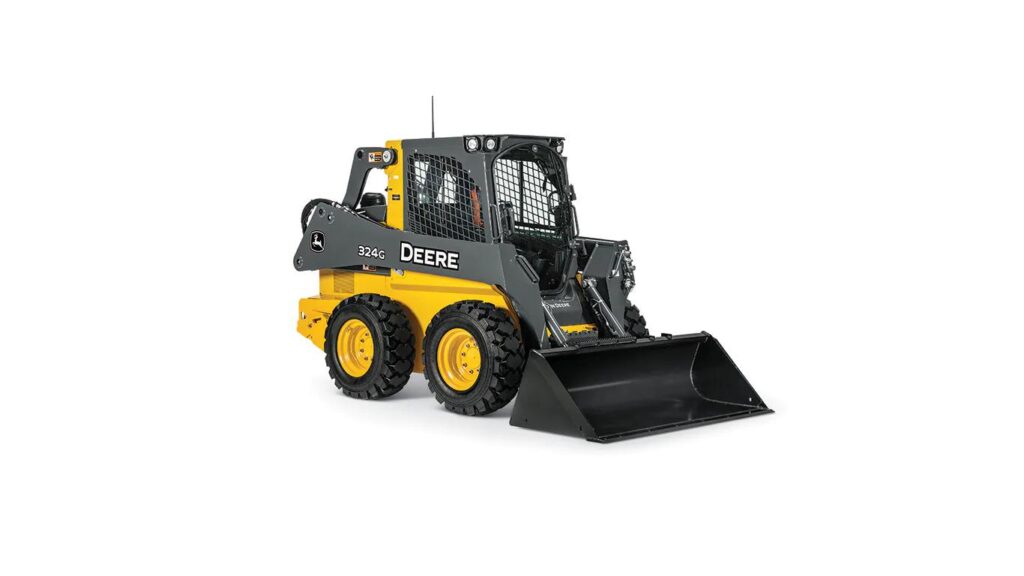

JOHN DEERE 324G Skid Steer
Compact Equipment
- Rated Operating Capacity: 1221 kg (2,690 lb.)
- Gross Horsepower: 55.0 kW (74 hp)
- Net Horsepower: 52.5 kW (70 net hp)
- Operating Weight: 3496 kg (7,700 lb.)
Select a category to view specifications (or view all).
| DIMENSIONS - Ground Clearance, mm (inches) | 240 (9.3) |
|---|---|
| DESCRIPTION - Fleet Management | Yes |
| DRIVELINE - Rated Engine Speed, rpm | 2500 |
| PERFORMANCE - Hydraulic Power, kW (hp) | 31.009 (41.5) |
| DRIVELINE - Emission Rating | Tier 4 |
| PERFORMANCE - Breakout - Bucket Foundry, kN (lbf) | 38.9 (8750) |
| DIMENSIONS - Overall Height, mm (inches) | 2060 (81.1) |
| PERFORMANCE - Pump Flow - Option, lt/min (gallons (US) / min) | 120 (32) |
| PERFORMANCE - Speed - Maximum, kph (mph) | 11.1 (6.9) |
| PERFORMANCE - Speed - Maximum Option, kph (mph) | 17.9 (11.1) |
| DRIVELINE - Aspiration | Turbo |
| DESCRIPTION - Proximity Guidance | No |
| DRIVELINE - Tire size - Standard | 12 x 16.5 - 12 PR SKS |
| CAPACITIES - Fuel Tank, ltr (gallons (US)) | 79 (21) |
| DIMENSIONS - Length - With Bucket Foundry, mm (inches) | 3460 (136.3) |
| DIMENSIONS - Wheelbase, mm (inches) | 1120 (44.2) |
| DIMENSIONS - Dump Height - Maximum Foundry, mm (inches) | 2590 (102.1) |
| PERFORMANCE - Tipping Load - Foundry, kg (lbs) | 2443 (5380) |
| DIMENSIONS - Width - No Bucket, mm (inches) | 1700 (67) |
| PERFORMANCE - Rated Operating Capacity - Foundry, kg (lbs) | 1221 (2690) |
| DRIVELINE - SAE Gross Power, kW (hp) | 55 (74) |
| DRIVELINE - Engine Manufacturer | Yanmar |
| DIMENSIONS - Rollback - Ground Level, Degrees | 34 |
| DRIVELINE - SAE Net Power, kW (hp) | 52.5 (70) |
| DIMENSIONS - Height to Hinge Pin, mm (inches) | 3200 (126) |
| DIMENSIONS - Rear Departure Angle, Degrees | 28 |
| DIMENSIONS - Length - No Bucket, mm (inches) | 2850 (112.3) |
| PERFORMANCE - Axle Torque - Maximum, Nm (lbf / ft) | 6771 (4994) |
| DIMENSIONS - Reach - Max Dump Height Foundry, mm (inches) | 760 (29.9) |
| DRIVELINE - Drive Chain Rating [ANSI] | 80 - HD |
| PERFORMANCE - Hydraulic Power - Option, kW (hp) | 47.103 (63.1) |
| DESCRIPTION - Lift Geometry | Vertical |
| WEIGHTS - Operating Weight - Foundry, kg (lbs) | 3496 (7700) |
| DESCRIPTION - Precision Guidance | No |
| DRIVELINE - Max. Gross Torque, Nm (lbf / ft) | 280 (207) |
| PERFORMANCE - Breakout - Lift Foundry, kN (lbf) | 23.3 (5250) |
| PERFORMANCE - Rated Operating Capacity - Optional Counterweight Foundry, kg (lbs) | 1294 (2850) |
| PERFORMANCE - Pump Output, lt/min (gallons (US) / min) | 78 (21) |
| DIMENSIONS - Dump Angle, Degrees | 41 |
| DRIVELINE - Engine Model | 4TNV98CT |
| PERFORMANCE - System Pressure, bar (PSI) | 237.87 (3450) |
| DRIVELINE - Displacement, ltr (Inches³) | 3.3 (203) |
Featured List
- NET HORSEPOWER: 52.5 kW (70 hp)
- BUCKET BREAKOUT FORCE: 2724 kg (6,000 lb.)
- OPERATING WEIGHT: 3496 kg (7,700 lb.)
- RATED OPERATING CAPACITY: 1221 kg (2,690 lb.)
- LIFT HEIGHT: 3.20 m (126.0 in.) (10 ft. 6 in.)
- GROSS HORSEPOWER: 55.0 kW (74 hp)
Featured Content
With the universal Quik-Tatch,™ you can go from skid steer bucket, to forks, to whatever, in just seconds. Each loader model delivers plenty of standard hydraulic power to operate augers, roller levels, trenchers, or power rakes, to list just a few.
- Easy Maintenance: Cab foot-well area can be washed out in a matter of minutes. Glove-friendly removable side windows make cleaning easier.
- Optional JDLink™ provides machine data and health alerts to help you decrease costly downtime.
- Easy-to-operate controls maximize an operator’s skills, for more everyday productivity.
- Spacious, comfortable cab is even more tightly sealed to keep out noise and dust. Available options include a four-season cab, Bluetooth® radio, and heated seats.
- Excellent all-around visibility has been further enhanced with customer-inspired side lighting and rearview camera options.
- Industry-leading bucket breakout forces and auxiliary flow
- The 324G’s height to hinge pin is 10 ft. 6 in. to easily load high-sidewall dump trucks, feed mixers, and hoppers.
- Features an EPA Final Tier 4 (FT4)/Stage IV engine that is simple, fully integrated, and fully supported to deliver industry-leading fuel efficiency and uptime.
