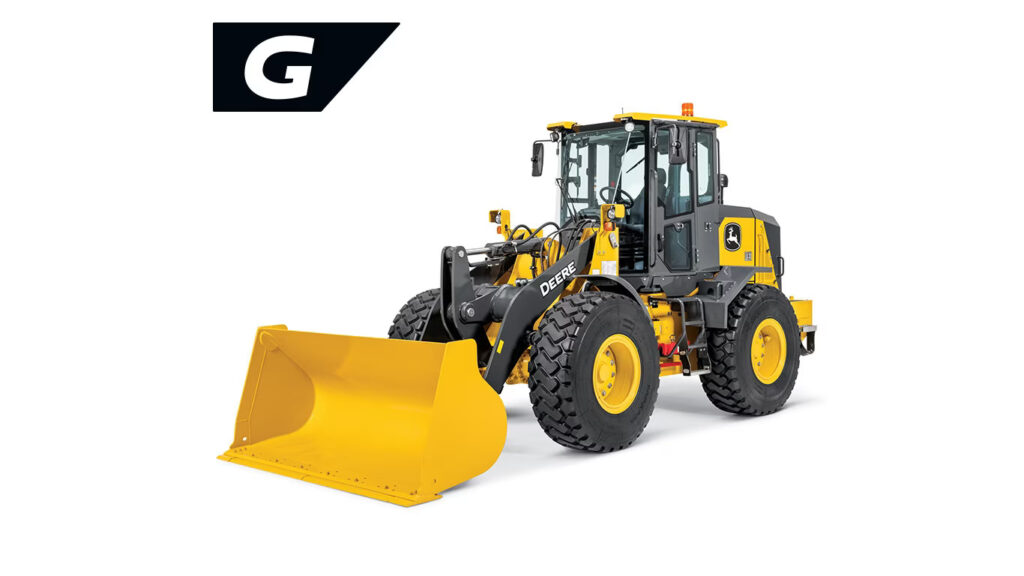

JOHN DEERE 444 G-Tier Mid-Size Wheel Loader
Construction
-
Net Power: 92 kW (124 hp) at 2,100 rpm
-
Operating Weight: 11,289-11,941 kg (24,887-26,325 lb.)
-
Bucket Capacity: 1.9-2.1 m3 (2.5-2.75 cu. yd.)
| DIMENSIONS - Wheelbase, mm (ft/in) | 2760 (9 ft 6 in) |
|---|---|
| DRIVELINE - Front Differential Type | Limited Slip |
| DIMENSIONS - Height - Pivot Pin, mm (ft/in) | 3580 (11 ft 9 in) |
| CAPACITIES - Pump Type | Piston |
| CAPACITIES - System Pressure, bar (PSI) | 248.21 (3600) |
| DRIVELINE - Parking Brake - Type | Wet Multi Disc |
| DIMENSIONS - Height - Over Cab, mm (ft/in) | 3130 (10 ft 3 in) |
| DIMENSIONS - Reach - At 2130mm 45° Dump, mm (ft/in) | 1440 (4 ft 9 in) |
| DRIVELINE - Engine Model | PowerTech E 4045H |
| DRIVELINE - Engine Manufacturer | John Deere |
| CAPACITIES - Pump Flow - 1, lt/min (gallons (US) / min) | 140 (37) |
| WEIGHTS - Operating Weight, kg (lbs) | 10026 (22077) |
| CAPACITIES - Fuel Tank, ltr (gallons (US)) | 190 (50) |
| DRIVELINE - Tire size - Standard | 17.5 R25 |
| DRIVELINE - Rated Speed, rpm | 2100 |
| DRIVELINE - Torque, Nm (lbf / ft) | 525 (387) |
| DRIVELINE - Transmission Type | Powershift |
| DIMENSIONS - Ground clearance, mm (inches) | 349 (13.75) |
| DRIVELINE - Displacement, ltr (Inches³) | 4.5 (276) |
| CAPACITIES - Hydraulic Tank, ltr (gallons (US)) | 92 (24.3) |
| DRIVELINE - Rear Differential Type | Limited Slip |
| DIMENSIONS - Width Over tires - Std, mm (ft/in) | 2415 (7 ft 11 in) |
| DRIVELINE - Service Brake - Type | Wet Multi Disc |
| CAPACITIES - Heaped Capacity, m³ (yd³) | 1.9 (2.5) |
| DRIVELINE - Engine Output - Net, kW (hp) | 92 (124) |
| CAPACITIES - Breakout - Bucket, kgf (lbf) | 8000 (17637) |
Featured List
- Operating Weight: 11,289-11,941 kg (24,887-26,325 lb.)
- Engine Net Power: 92 kW (124 hp) at 2,100 rpm
- Bucket Capacity: 1.9-2.1 m3 (2.5-2.75 cu. yd.)
Featured Content
-
Powered by the reliable John Deere 4.5L engine found in our 444 P-Tier Loader, the 444 G-Tier uses components similar to those featured in both our current and previous series loaders for decades.
-
Rugged powertrain with newly updated transmission, limited slip differentials, and hydraulic and electrical systems are the result of thousands of hours of experience on a wide range of jobsites.
-
Auto-idle and auto shutdown reduce engine speed or turn it off after a period of inactivity to save fuel and warranty hours.
-
The John Deere 444 G-Tier Wheel Loader was designed to deliver a low-cost solution while providing the type of performance you’re accustomed to with the 444 P-Tier model.
-
Comfortable and spacious cab features ergonomically placed joystick controls, foot pedals, sealed-switch module (SSM), and adjustable five-inch monitor that displays vital machine data as well as the view from the rearview camera.*
-
Common controls will be familiar to both novice and skilled operators. In-cab adjustable boom-height kickout, return to carry, and return to dig can be easily activated from the SSM, boosting productivity in repetitive applications.
*Rearview camera standard for EPA Final Tier 4/EU Stage V; optional for EPA Tier 3/EU Stage IIIA.
-
For extra reach when loading trucks, hoppers, or feed mixers, adding High-Lift linkage provides an extra 17 inches of hinge-pin height over standard linkage.
-
Contractors and governmental agencies can specifically benefit from using the 444 G-Tier Loader for snow-removal tasks. Snow tires, couplers, beacons, and third-function hydraulics are available from the factory to equip your machine to handle the white stuff.
-
Equip your John Deere 444 G-Tier Loader with a Hi-Vis/ISO- or JRB-style coupler, which accepts L- and K-Series as well as G-, P-, and X-Tier buckets and other attachments, to maximize machine utilization and versatility.
