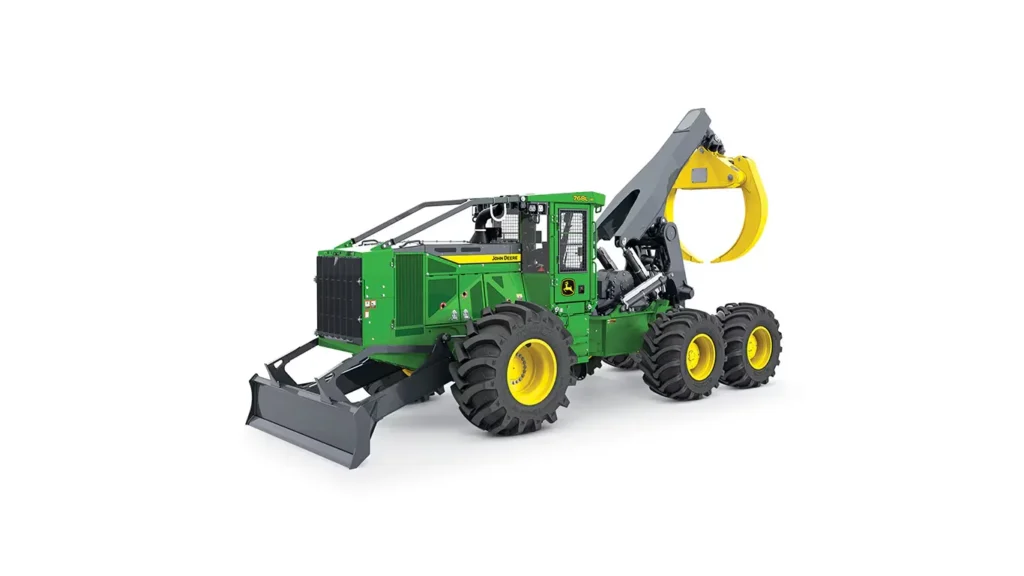

JOHN DEERE 768L Bogie Skidder
Forestry Equipment
- Gross Power: 210 kW (281 hp)
- Gross Torque: 1276 Nm (941 ft.-lb.)
- Max. Grapple Capacity: 2.07 m2Â (22.3 sq. ft.)
- Operating Weight: 23 697 kg (52,245 lb.)
Select a category to view specifications (or view all).
| Description - Standard Arch Function | Dual |
|---|---|
| Driveline - Engine Manufacturer | John Deere |
| Driveline - Engine Model | PowerTech PSS 9.0L |
| Driveline - Displacement, ltr (Inches³) | 9 (549) |
| Driveline - Engine Output, kW (hp) | 210 (281) |
| Driveline - Engine Torque, Nm (lbf / ft) | 1276 (941) |
| Driveline - Transmission | Continuous Variable Transmission |
| Driveline - Planetaries | Inboard |
| Driveline - Rear Axle | Bogie |
| Driveline - Service Brake Type | Inboard Wet discs |
| Driveline - Parking Brake Type | Wet multi-disc in Transmission |
| Dimensions - Overall Length, mm (inches) | 11100 (437) |
| Dimensions - Height Over Cab, mm (inches) | 3365 (132.5) |
| Dimensions - Overall Width, mm (inches) | 3508 (138.1) |
| Dimensions - Wheelbase, mm (inches) | 4416.7 (173.8) |
| Dimensions - Dozer Blade Height, mm (inches) | 691 (27.2) |
| Dimensions - Ground Clearance, mm (inches) | 557 (21.9) |
| Dimensions - Dozer Blade Width, mm (inches) | 2962.4 (116.6) |
| Dimensions - Dozer Blade - Dig Depth, mm (inches) | 359 (14.1) |
| Dimensions - Tong Opening At Tips, mm (inches) | 3785 (149) |
| Dimensions - Enclosure Area, m² (ft²) | 1.63 (17.5) |
| Dimensions - Steering Articulation Angle, ± Degrees | 45 |
| Capacities - Fuel Tank, ltr (gallons (US)) | 352 (93) |
| Capacities - Hydraulic Tank, ltr (gallons (US)) | 123.6 (32.6) |
| Capacities - Alternator Output, Amp | 150 |
| Performance - Travel Speed, kph (mph) | 17.97 (11.16) |
| Performance - Oscillation Point | Front axle |
| Performance - Oscillation Angle, ± Degrees | 15 |
| Performance - Rated Line Pull, kN (lbf) | 213.5 (47997) |
| Performance - Rated Line Speed, m/min (ft/min) | 20.1 (66) |
| Performance - System Voltage, V | 24 |
| Performance - Pump | Var. axial-piston |
| Weights - Operating Weight, kg (lbs) | 23697 (52245) |
Featured Content
- For work in wet, muddy conditions, the six-wheel 768L-III Bogie Skidder combines tenacious tractive ability and flotation with reduced ground pressure to carry large loads long distances.
- The 768L-III features balanced bogie axles that help reduce machine vibration to deliver a comfortably smooth ride plus outstanding traction and flotation in wet and muddy terrain.
- Spacious and quiet standard cab boasts an adjustable new durable-cloth seat and integrated TimberMatic™ Maps.
- Premium cab option includes set-and-forget Automatic Temperature Control system, cameras, secondary display unit, and other operator-assistance features.
- Optional premium leather seat that’s heated, vented, and adjustable seven ways takes operator comfort to the next level.
- Operators are now able to select three different seat positions including facing the right-side door.
- Armrest-mounted electrohydraulic controls provide easy, fingertip operation of all machine functions.
- Available with the premium cab package, new blade-view camera enables visibility to attachments as you work the jobsite.
- Secondary touch-screen display provides intuitive access to cameras, slope details, and machine information.
- Continuously Variable Transmission (CVT) combines the efficiency of direct drive with the smoothness and operating ease of hydrostatic drive.
- Automatically sensing the load, CVT delivers torque and tractive effort as needed to maintain the maximum speed the operator sets, helping reduce engine wear, optimize fuel economy, and eliminate manual shifting.
- Digital solutions that monitor operator work statistics, travel/trip-meter capability, and advanced map layers help keep track of important operational basics.
- Near-real-time production and operator-performance reporting to business owners and managers allows informed analysis of owning and operating costs.
