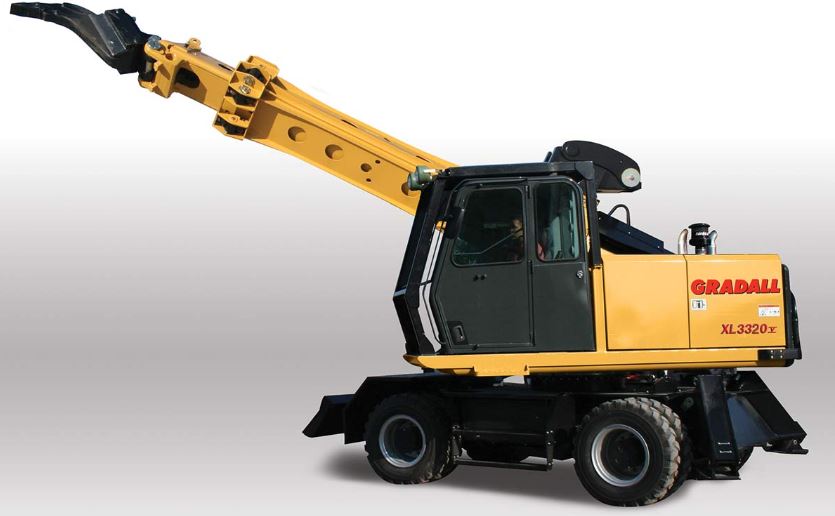

GRADALL XL 3320 V
Industrial Utility
Equipment Specifications
| Max Loading Height | 15' 11" (4.9)) |
|---|---|
| Operating Weight | 42,294 lb (19,184 kg) |
| Max. Radius at Groundline | 10' 5" (3.2) |
| Swing Clearance | 7' 6" (2.3) |
| Engine Standard | Volvo TAD571 VE, Tier 4f |
| HP @ RPM | 172/2000 |
Select a category to view specifications (or view all).
| Max. Digging Depth | 19' 2" (5.6) |
|---|
- Powered by a single Volvo Penta engine that meets highest global standards including State IV (EU) and Tier-4 Final emissions
- Steering and drive axles are fitted with axle oscillation oscillation assemblies to create a stable working platform for work in any direction without the need for outriggers
- Deliver appropriate scaling power without wasting fuel using the two-section telescoping boom that’s armed with high-pressure, load sensing hydraulics
- All hydraulic hoses are located safely inside the boom
- High performance, high reliability 24-volt electrical system
