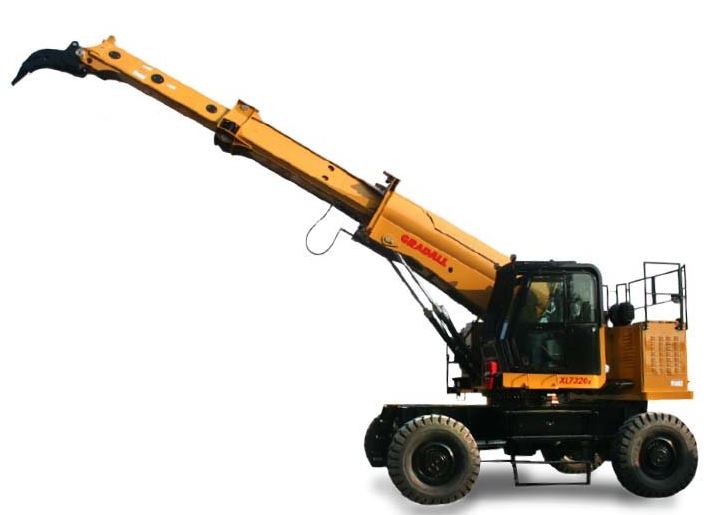

GRADALL XL 7320 V
Industrial Utility
Equipment Specifications
| Swing Clearance | 10' 0" (3.0) |
|---|---|
| Max. Radius at Groundline | 47' 10" (14.6) |
| Engine Standard | Volvo TAD572 VE, Tier 4f |
| Max. Digging Depth | 6' 2" (1.9) |
| Operating Weight | 77,500 lb (35,153 kg) |
| Max Loading Height | 48' 2" (14.7) |
Select a category to view specifications (or view all).
| HP @ RPM | 215/2200 |
|---|
- Powered by a single Volvo Penta engine that meets highest global standards including State IV (EU) and Tier-4 Final emissions
- Steering and drive axles are fitted with axle oscillation oscillation assemblies to create a stable working platform for work in any direction without the need for outriggers
- Deliver appropriate scaling power without wasting fuel using the two-section telescoping boom that’s armed with high-pressure, load sensing hydraulics
- All hydraulic hoses are located safely inside the boom
- High performance, high reliability 24-volt electrical system
