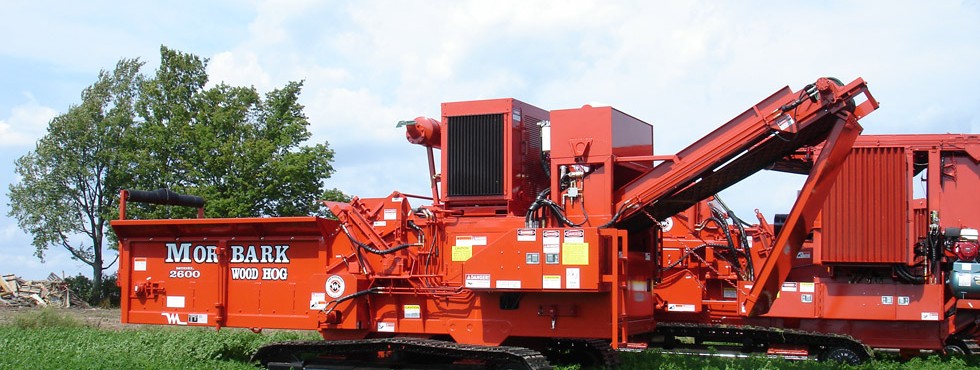

MORBARK 2600 Wood Hog Horizontal Grinder
Horizontal Grinders
Compact and easy-to-tow, the Morbark 2600 Wood Hog Horizontal Grinder is perfect for processing yard waste, brush and other mixed woody feedstock into saleable product. Equipped with up to 300 horsepower (224 kW) as well as a variety of innovative design elements, this efficient little package can take your business to the next level.
Equipment Features
Featured List
- Electric Power - Electric power is available as an option for a cleaner and often more cost-effective way to process organic waste.
- Feed System - Internal planetary drive with no chains and sprockets means lower maintenance, more torque and better durability.
- Hammermill - Laser-cut upturn rotor, factory balanced with forged hammers, offers unsurpassed durability and smooth operation.
- Morbark Integrated Control Systems (MICS) - Automatically adjusts feed rates and monitors pressures and feed wheel position to maximize production and engine efficiency.
Featured Content
Infeed opening: 34” x 57” (86.4 cm x 114.8 cm)
Variable speed infeed system consists of one 22” (55.8 cm) diameter top compression feed roll with internal drive and a 57” wide x 9’7” (144.8 cm x 2.9 m) long live floor with four strands of WDH-110 chain in a staggered configuration.
- Electric power
- Single Axle Option
- Live floor equipped with slat chain
- 12- or 16-knife chipper drum assembly
- Variety of grates sizes available
- 4” (1.22 m) extended infeed
23-¾” x 53-1/8” (60.32 cm x 134.9 cm) hammermill system constructed of heavy-duty 16” diameter rotor, (23) 1-1/8” (2.85 cm) thick two-piece laser-cut rotor plates to ensure precision and enforce steel strength. The plates are keyed on a 4-1/2” (11.43 cm) diameter shaft with two 3-7/16” (8.73 cm) bearings and eight 1-¼” (3.17 cm) hammer retaining rods. Hammermill pattern consists of (22) 1-¼” (3.17 cm) forged steel heavy-duty hammers, and (22) 2-1/16” (5.24 cm) wide double-edged replaceable inserts and 22 rakers.
Length wheeled: 33’8” (10.26 m)
Height wheeled: 11’6” (3.5 m)
Width wheeled: 7’10” (2.39 m)
Length tracked: 30” (9.1 m)
Height tracked: 11’6” (3.5 m)
Width tracked: 8’6” (2.6 m)
Gross weight wheeled: 30,660 lbs. (13,910 kg)
Axle weight: 23,920 lbs. (10,850 kg)
Tongue weight: 6,720 lbs. (3,050 kg)
Gross weight tracked: 32,000 lbs. (14,515 kg)
Engine: CAT
Horsepower: 275 HP to 300 HP (205 kW to 224 kW)
Fuel capacity (tank): 90 gallons (340 litres)
Hydraulic oil capacity: 92 gallons (348 litres)
Screen Area: 2,585 sq in (16,677 sq cm)
Brakes: air
Towing arrangement: fifth wheel/pintle hitch
Dust suppression system
Manually operated debris containment door
Remote control with tethered remote back”up system
Magnetized end pulley with collecting slide tray for ferrous metal removal
Air compressor with 11-HP (8.2 kW) motor
Break-away torque limiter
Discharge conveyor system consists of one hydraulically driven continuous belt with 40” wide x 17’6” long belly and stacking conveyor.
