Machine weight: 81,000 lbs. (36,740 kg)
Length (transport): 28’11” (8.8 m)
Length (operating): 48’1” (14.65 m)
Height (transport) : 12’2” (3.71 m)
Height (operating): 14’3” (4.34 m)
Width: 8’4” (2.54 m)
Discharge Height: 14’1” (4.29 m)
Engine: CAT or Scania
Horsepower: 540 HP (402.7 kW)
Fuel capacity (tank): 184 gallons (696.5 litres)
Hydraulic oil capacity: 210 gallons (794 litres)
Rotor Chamber: 3’6”X 9’8” (1.06 m x 2.95 m)
Rotor Length: 9’10” (3 m)
Rotor Diameter: 3’5” (1.04 m)
Rotor Weight: 9,500 lbs. (4,309 kg)
Rotor speed variable: 0 to 40 RPM
Rotor torque: 2.2 million inch pounds (248,5666 N m)
Machine weight: 70,547 lbs. (32,000 kg)
Length (transport): 32’5” (9.88 m)
Length (operating): 51’7” (15.72 m)
Height (transport) : 13” (3.96 m)
Height (operating): 11’11” (3.63 m)
Width: 8’4” (2.54 m)
Discharge Height: 15” (4.57 m)
Engine: CAT or Scania
Horsepower: 540 HP (402.7 kW)
Fuel capacity (tank): 184 gallons (696.5 litres)
Hydraulic oil capacity: 200 gallons (757 litres)
17’10”x 40” (5.44 m x 12.19 m), pan support with Dura-lite™ slides, EP 400/3 smooth belting.
25’6” x 48” (7.77 m x 121.92 cm), pan support with Dura-lite™ slides, 3-ply aggregate belt with chevron cleats.

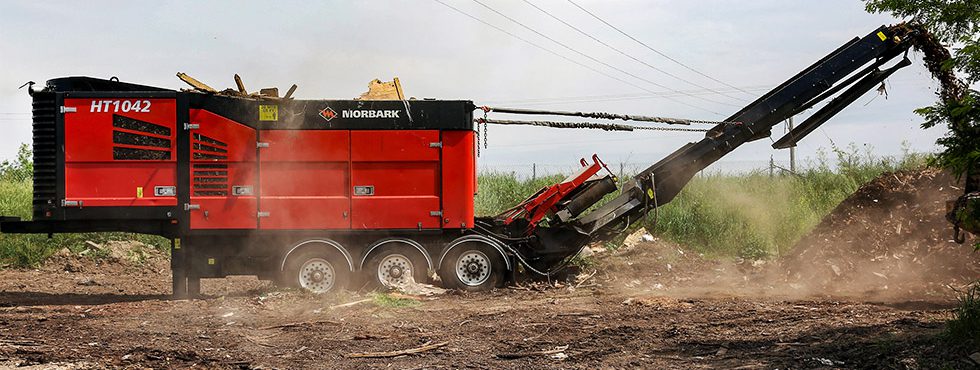

The HT1042 is an aggressive, versatile slow-speed shredder. Designed as a universal machine for reducing wood (demolition wood, green waste, etc.), industrial waste (construction, demolition, tires, plastic, etc.) and other waste streams, it features a single-rotor design, adjustable anvil and removable grate system, allowing the operator to quickly change machine set-up based on material to be processed and desired end product. Like all Morbark equipment, the HT1042 Slow-speed Shredder is a long-lasting, durable machine backed by a world-class parts and service support team.
